Elektrický multimetr BSIDE S40X

Hlavné vlastnosti BSIDE S40X

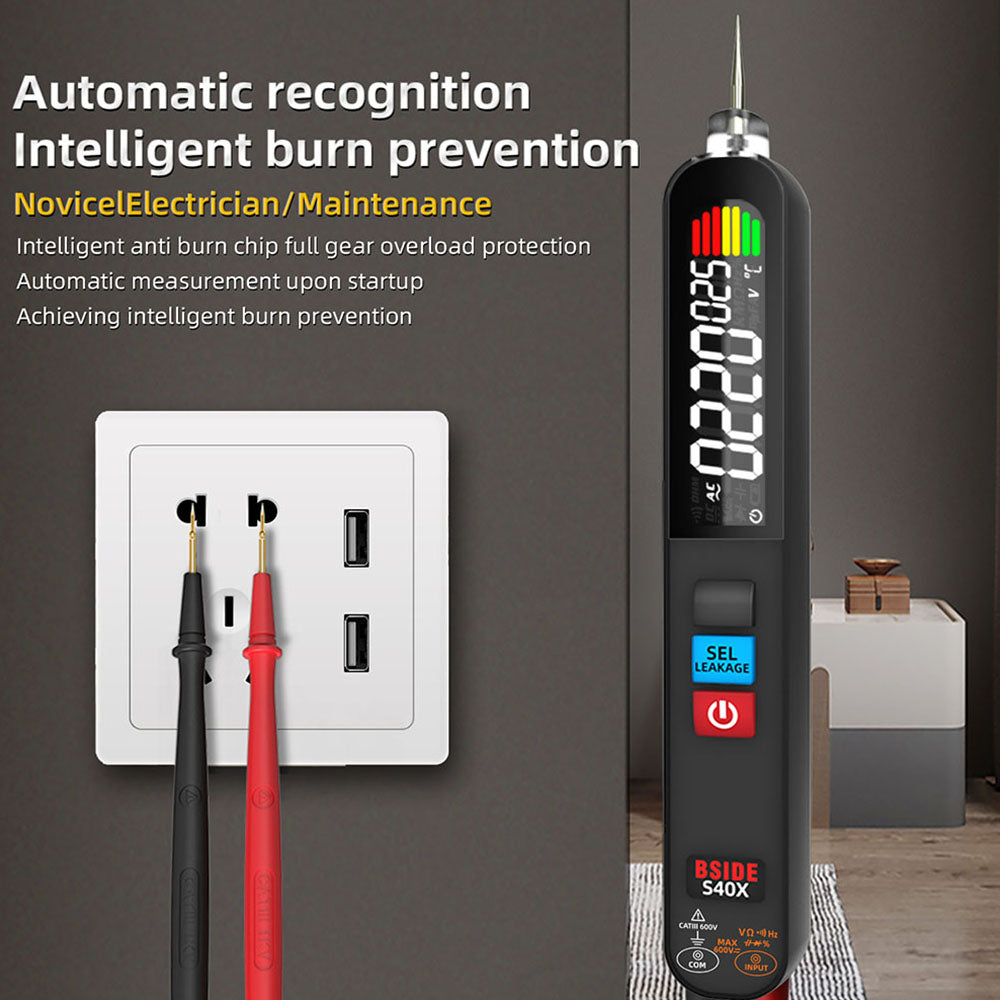

Plne inteligentný digitálny displej, detekcia úniku napätia, multifunkčný ručný multimeter s farebnou obrazovkou, model s ochranou proti prehriatiu, test na papieri, multimeter v podobe pera pre elektrikárov, 2 v 1, plne inteligentný digitálny displej, detekcia úniku napätia, multifunkčný ručný multimeter s farebnou obrazovkou, model s ochranou proti prehriatiu, test na papieri, multimeter v podobe pera pre elektrikárov, 2 v 1.

General
Brand	BSIDE
Type	Electric Pen Multimeter
Model	S40X
Color	Black

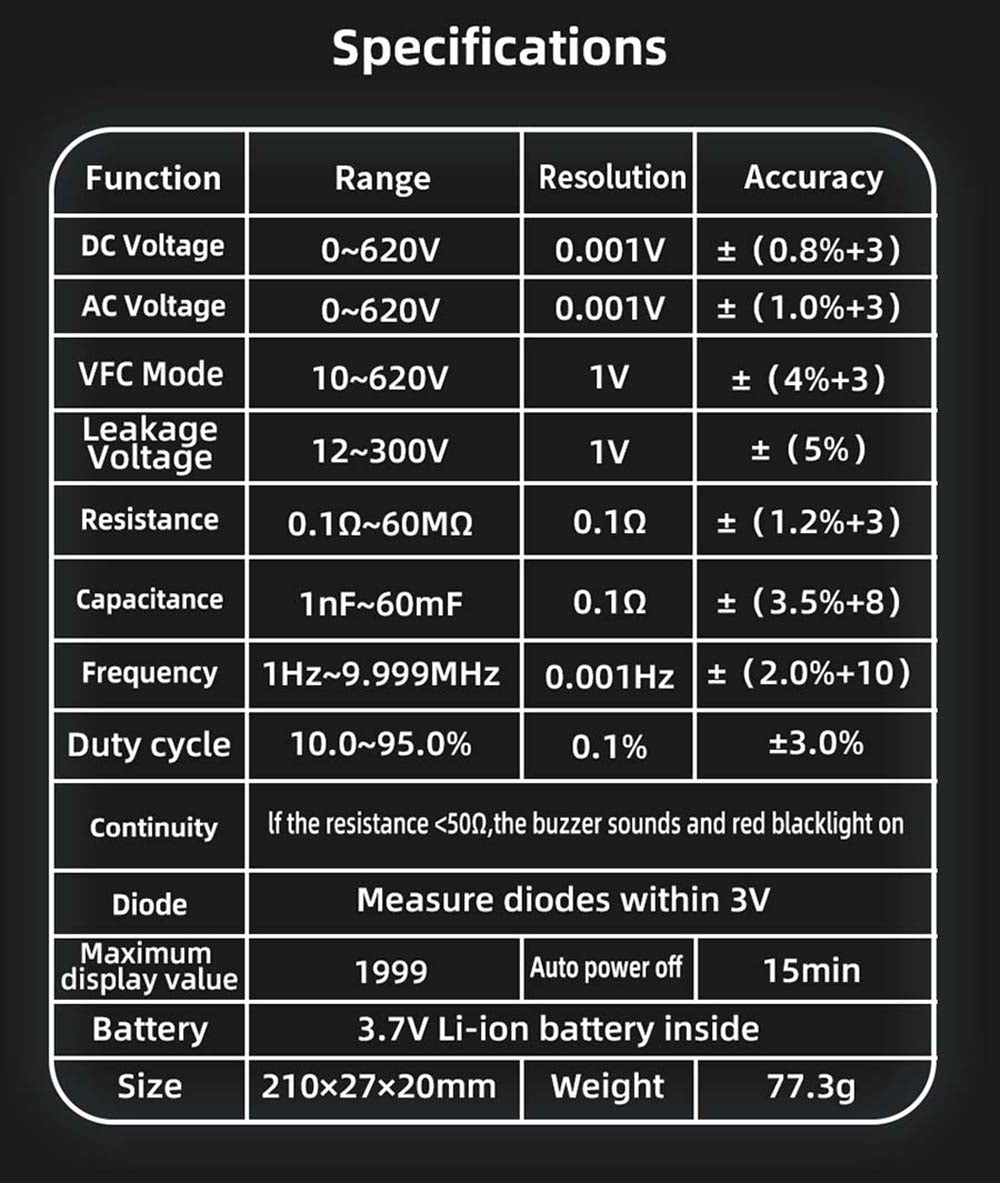

Specification
DC voltage	0-620V 0.001V ±(0.8%+3)
AC voltage	0-620W 0.001V ±(1.0%+3)
VFC mode	10-620V 1V ±(4%+3)

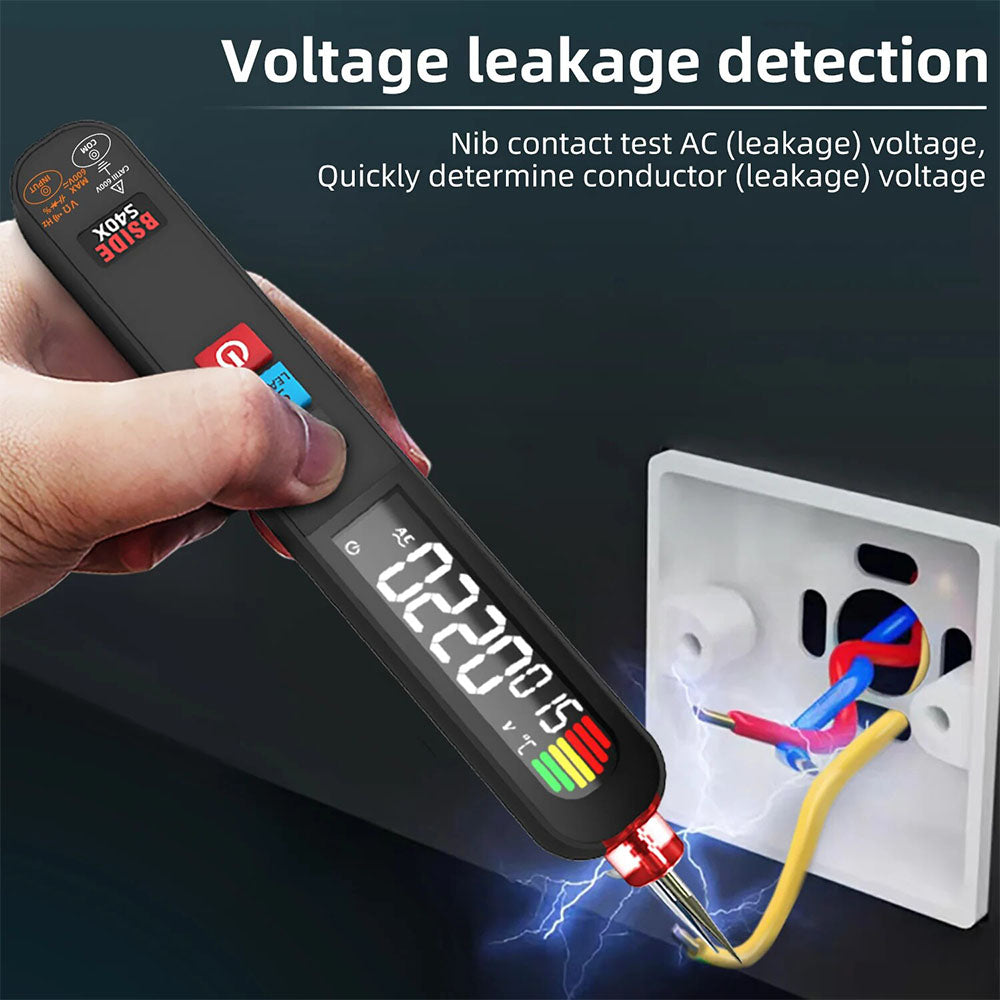

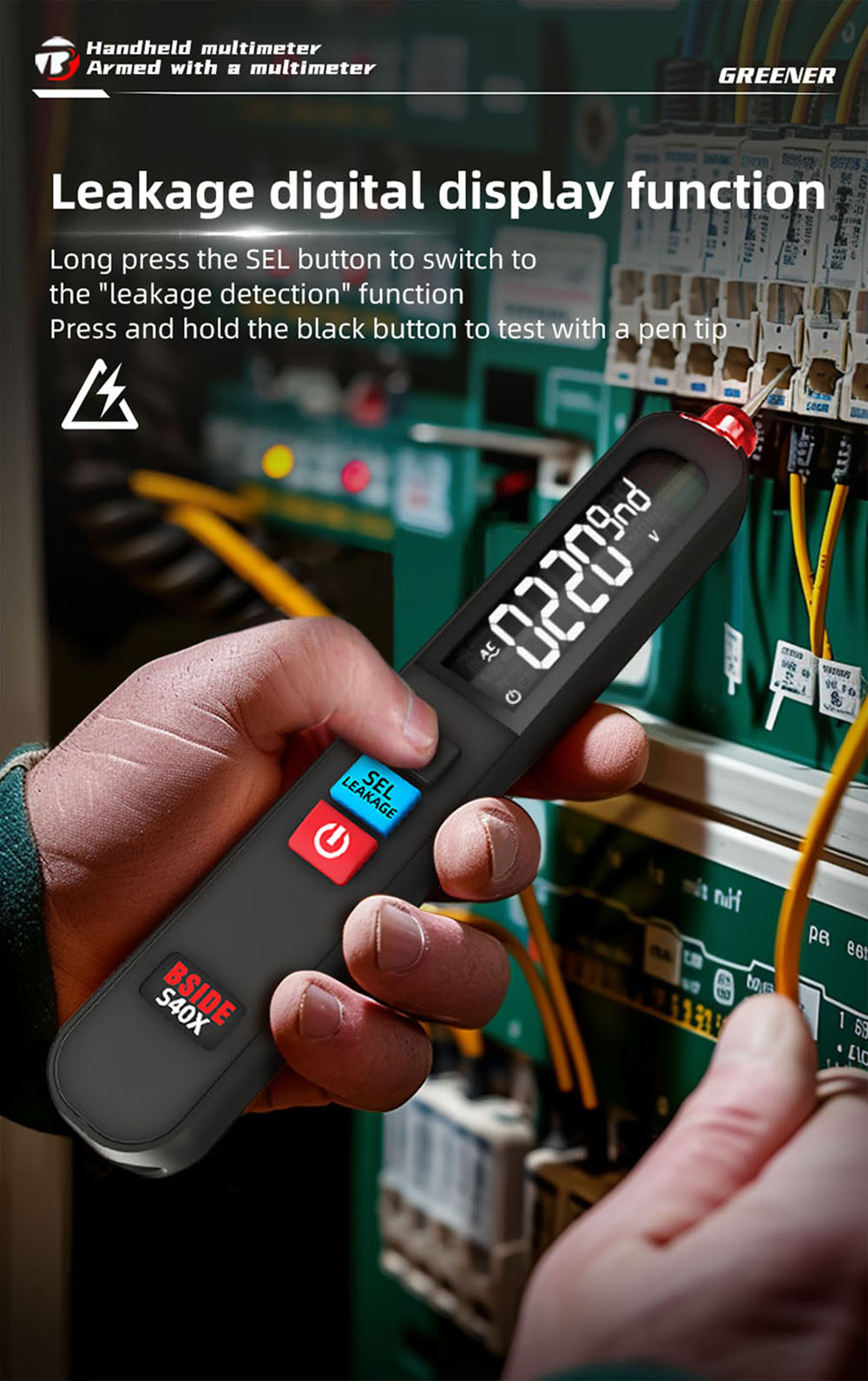

Leakage voltage	12-300V 1V ±(5%)

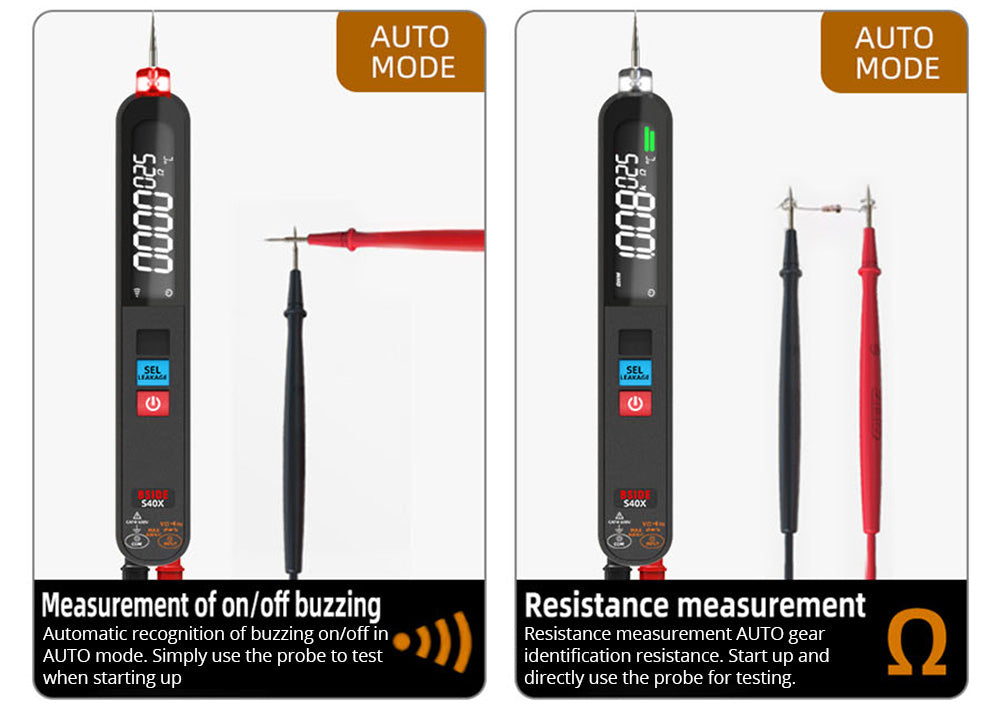

Resistance	0.1Ω-60MΩ 0.1Ω±(1.2%+3)

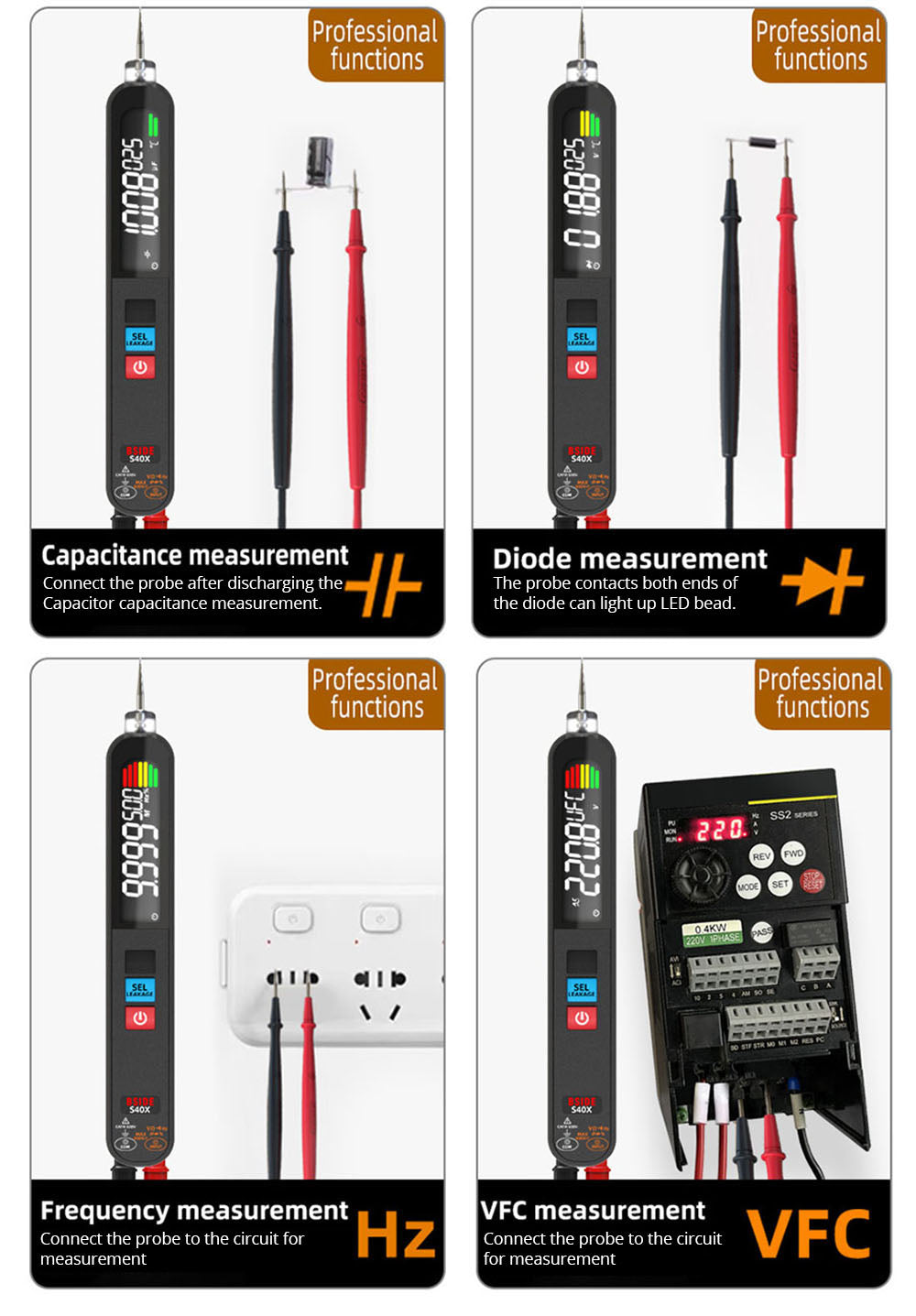

Capacitance	1nF-60mF 0.1Ω±(3.5%+8)
Frequency	1Hz-9.999MHz 0.001Hz ±(2.0%+10)
Duty cycle	10.0-95.0% 0.10%±3.0%

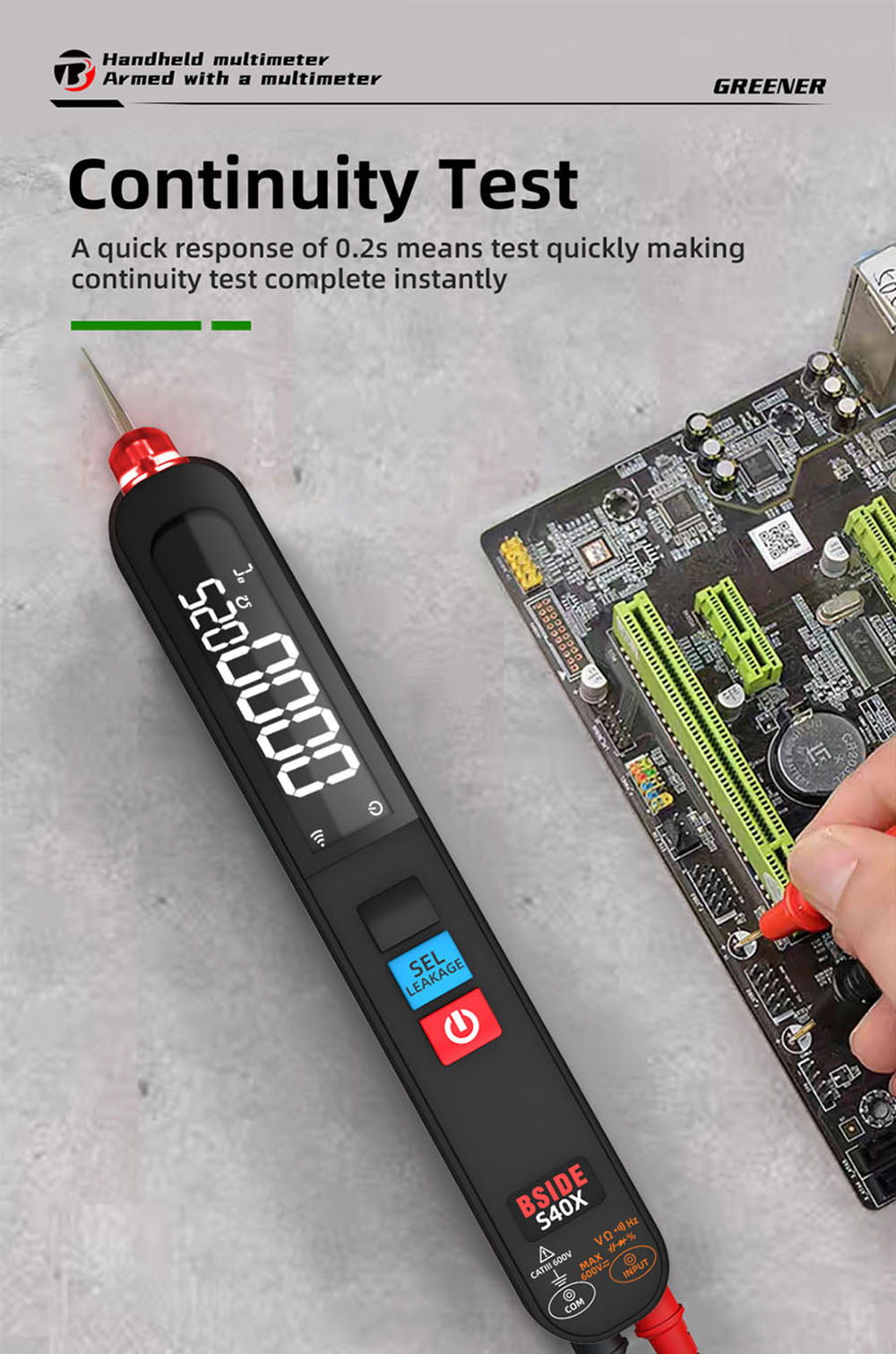

Continuity	If the resistance <500, the buzzer sounds, and red backlight on
Diode	Measure diodes within 3V
Maximum display value	1999
Auto power off	15min

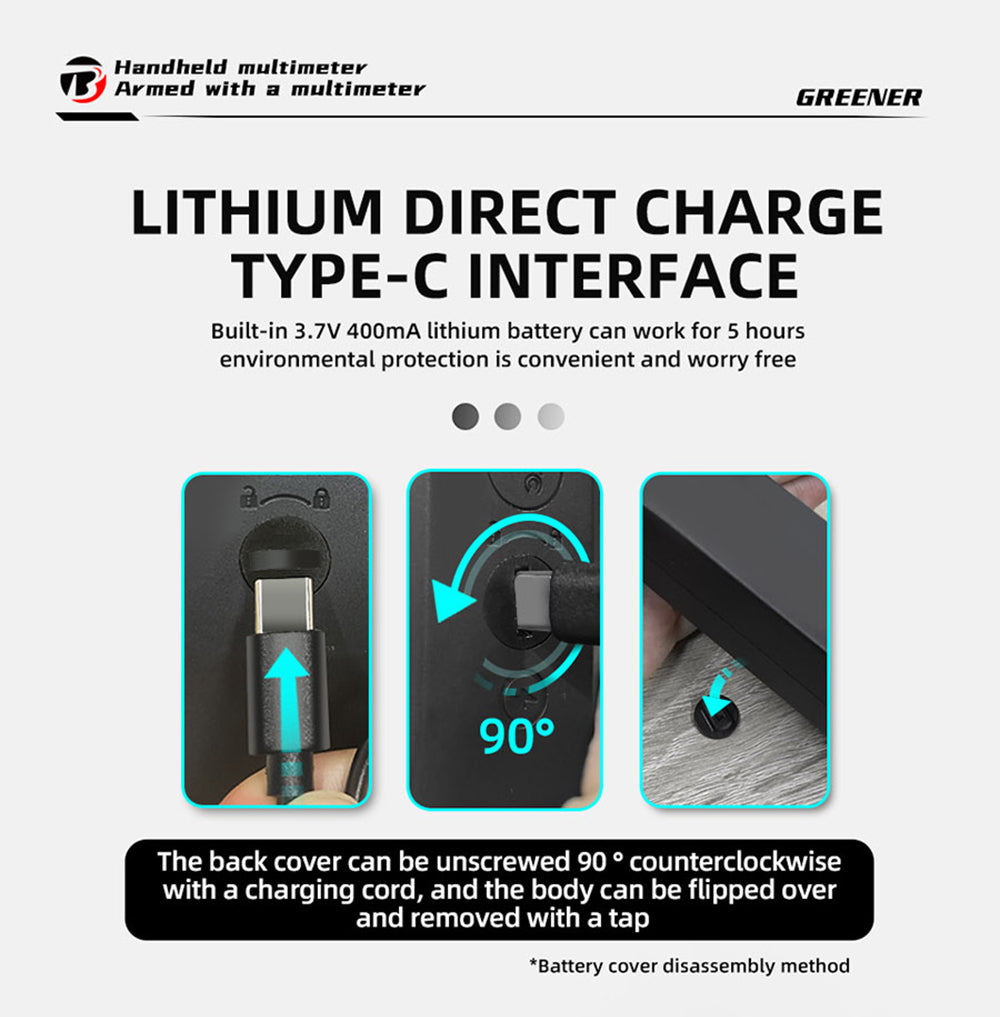

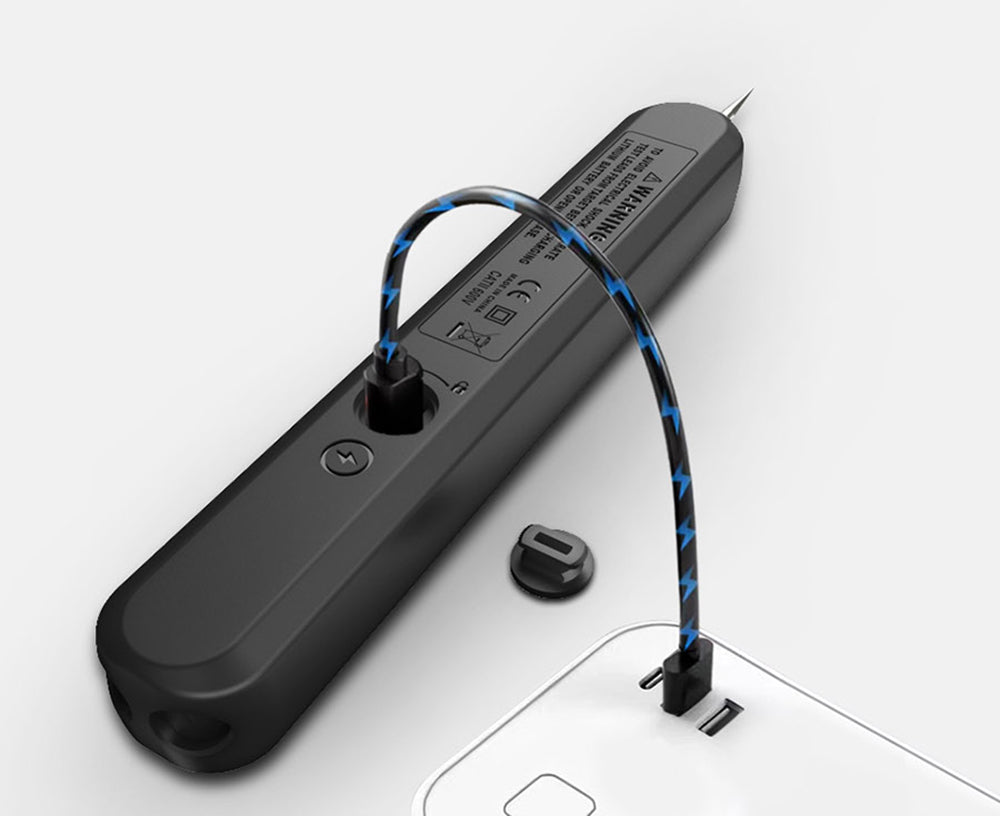

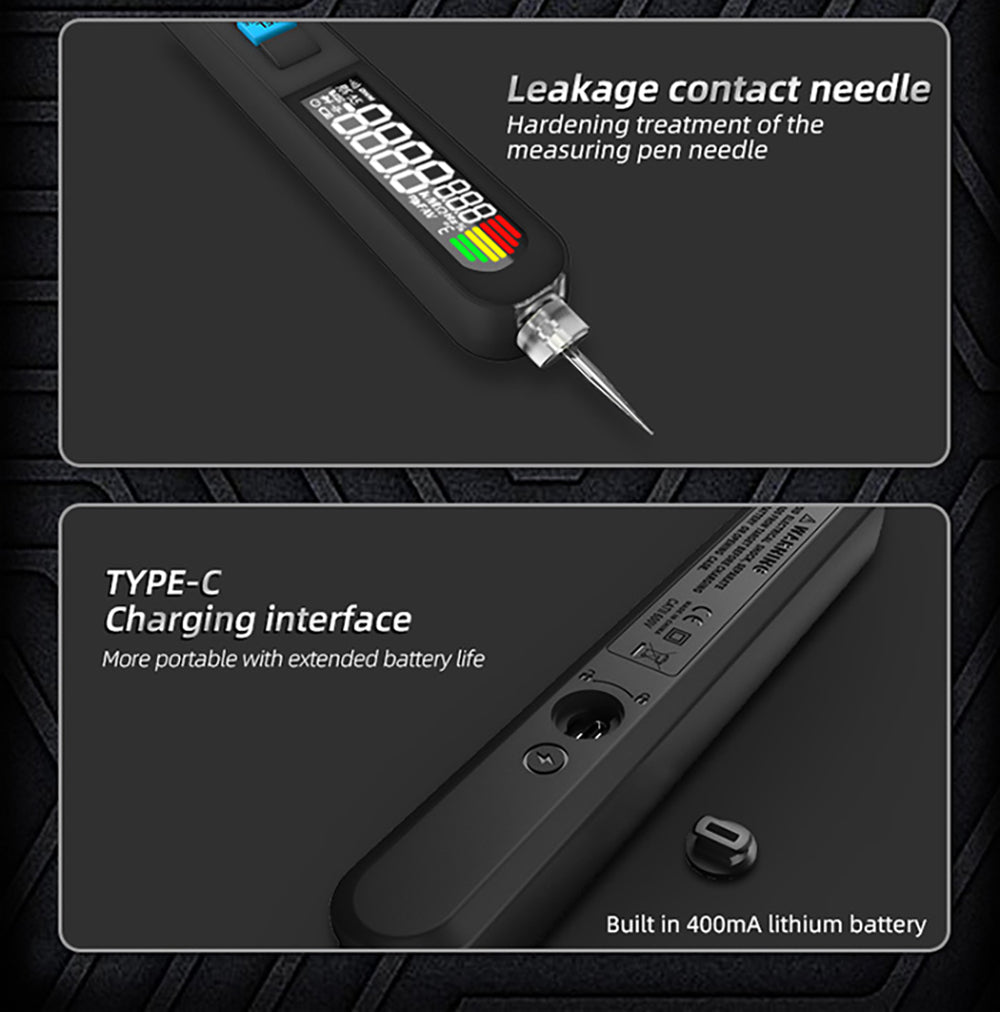

Battery	3.7V Li-ion battery inside
Weight & Size
Product Weight	77.3g
Package Weight	260g

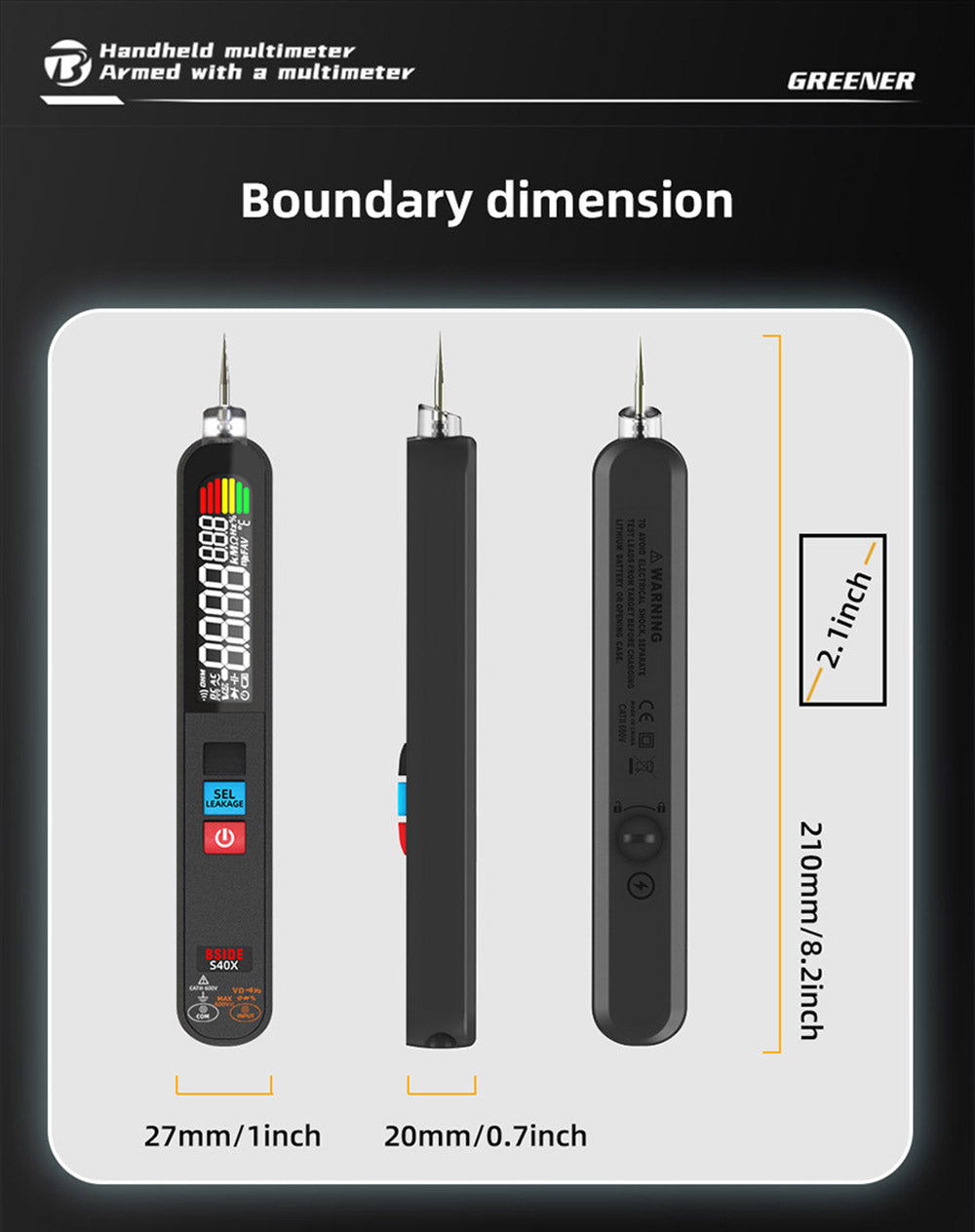

Package Size(L x W x H)	222*83*42mm

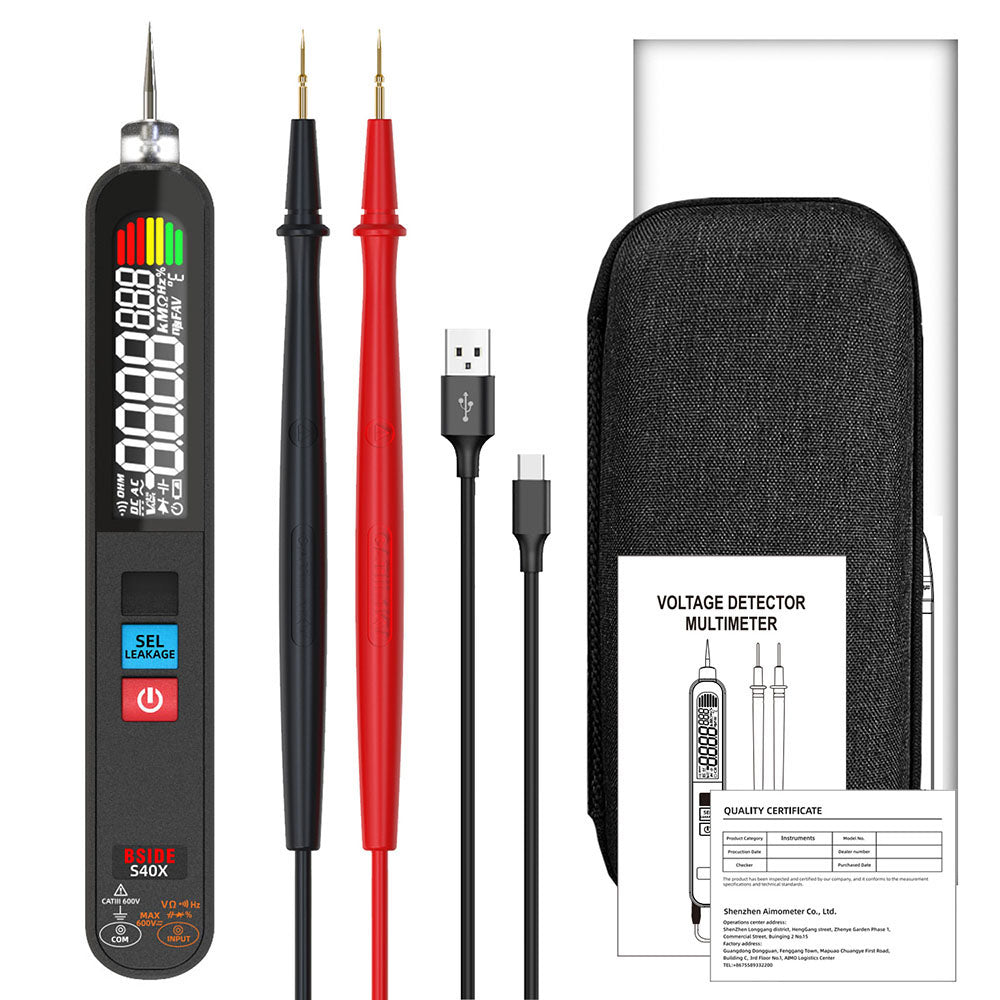

Package Contents
1 x Electric Pen Multimeter
1 x User Manual
